FOCO Myst Four 1200 Water Vapour Fireplace

A four-sided architectural flame feature

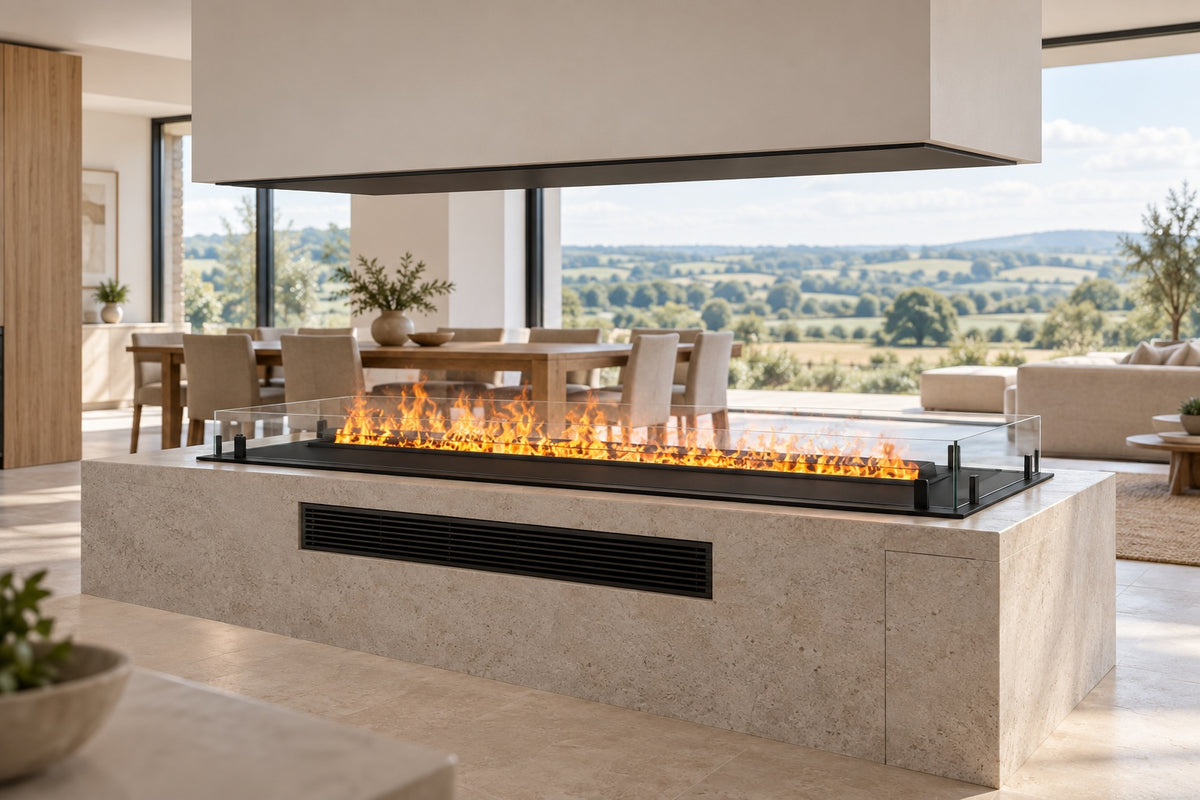

The FOCO Myst Four 1200 frames the flame effect between separate black upper and lower plates, leaving all four vertical faces open. It is designed to be built into a supported floating feature with an independent base, creating a view of the flame from around the room.

This configuration includes the Dimplex Opti-myst Cassette 1000 Retail with manual water refilling. LED light illuminates a fine water mist to produce the flame effect without burning fuel. There is no heat output, so this is an atmospheric feature rather than a room heater. The remote control allows convenient operation and adjustment of the flame effect.

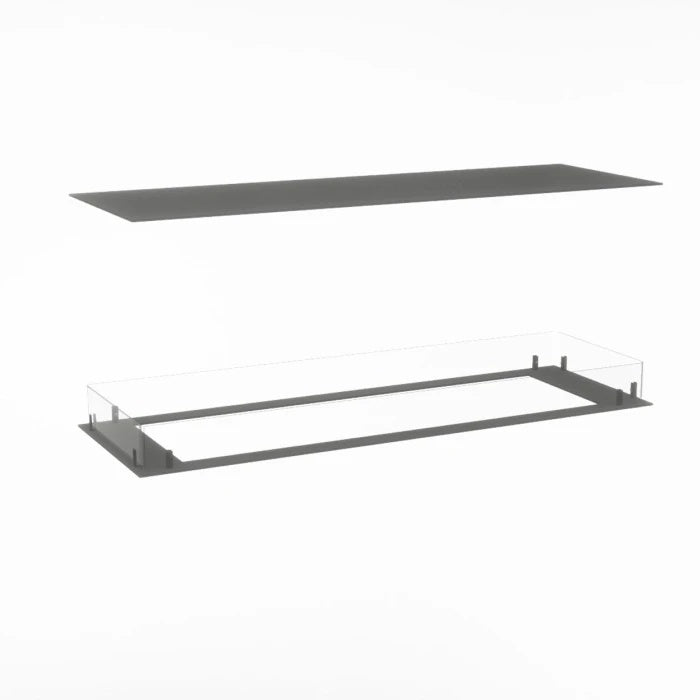

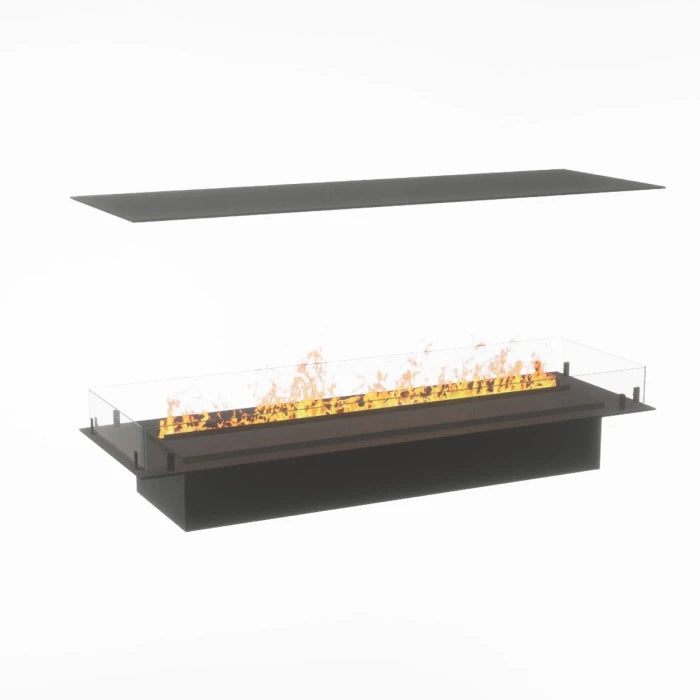

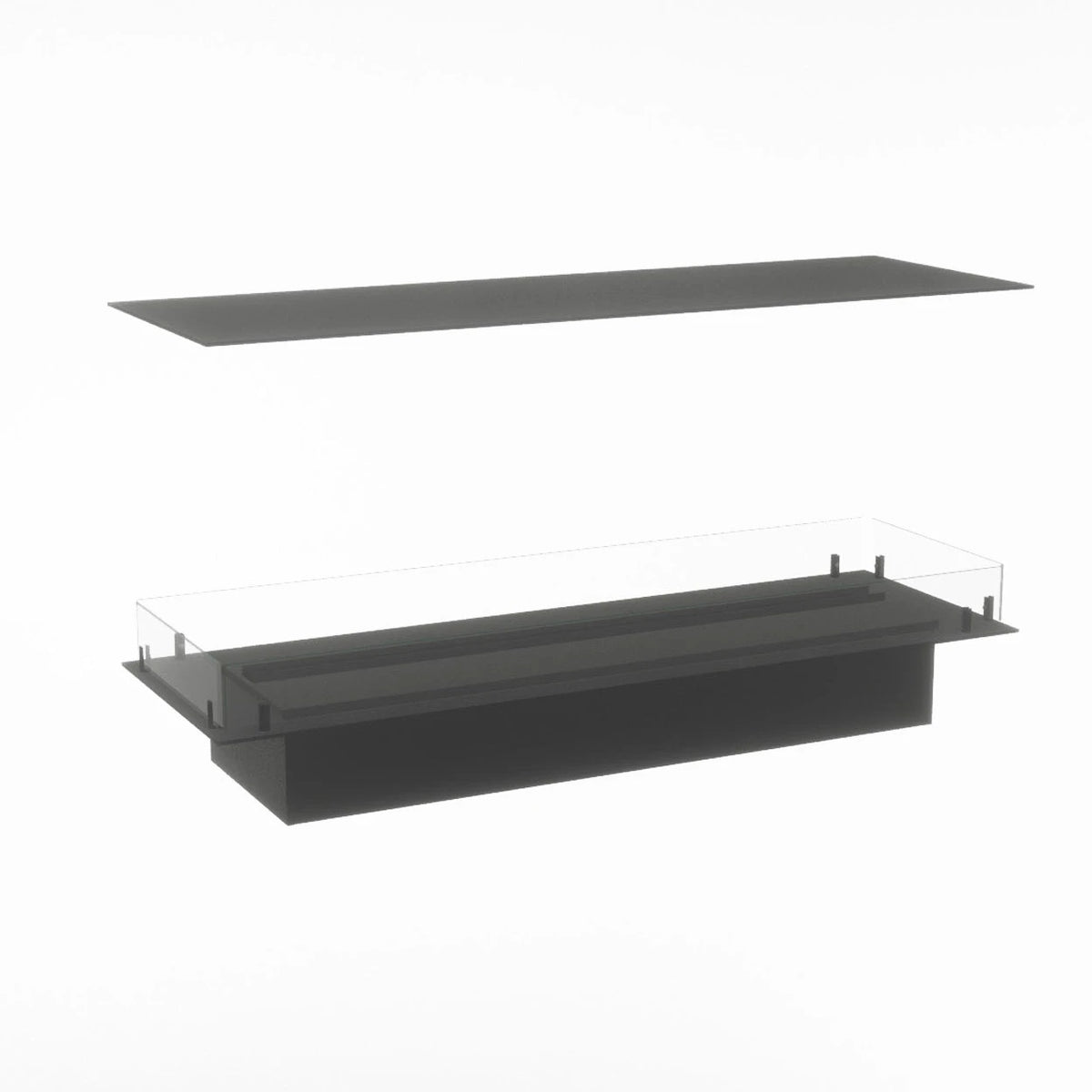

Included configuration

• FOCO Myst Four 1200 upper and lower frame plates.
• Dimplex Cassette 1000 Retail manual-refill water-vapour insert.
• Black base plates and frame assembly fittings.
• Four low tempered-glass panels and eight glass holders.
• Remote control, 1.5 m power cable and operating documentation.

The automatic mains-water-connected Projects cassette, decorative logs, ventilation grilles, structural fixings and surrounding construction are not included. This is a built-in insert, not a complete freestanding fireplace or finished media wall.

Specifications

Installation and care

Provide a stable, level support for the cassette and a minimum 400 mm clear space above it for the vapour to develop. The installation needs at least 420 cm² of free ventilation below the cassette, with unrestricted airflow to the unit. A grille reduces free area, so its overall opening may need to be larger. Keep access for manual refilling, cleaning and servicing.

The upper plate must be secured to the separately supported upper construction; the glass is not a structural support. Follow the FOCO installation guide and Dimplex manual for the exact recess, cassette supports, fixings and electrical connection. Frame footprint dimensions are not finished opening or cut-out instructions. No chimney or flue is required, but an electrical supply and the specified ventilation are essential.

Fill and maintain the water system as directed in the operating manual. Clean the tank, sump and transducer at the prescribed intervals; do not add fragrance or unapproved substances. Disconnect the electrical supply before maintenance. Installation, electrical work, cladding and structural building work are not included.

Delivery

The displayed price includes standard delivery within the supported England and Wales delivery area. Delivery is kerbside and does not include carrying the fireplace into the property, installation or building work. Check access and arrange suitable help to receive the delivery.

Warranty and statutory rights

Supplied with a two-year product warranty, subject to the applicable warranty terms and correct installation, use and maintenance. Keep your proof of purchase and the supplied documentation. Your statutory consumer rights are unaffected.

The Dimplex cassette also carries the separate manufacturer guarantee described in its manual: one year from purchase for repair or exchange, subject to its conditions and excluding transducer discs. This component guarantee does not replace the two-year product warranty or your statutory rights.

Manuals

• FOCO Myst frame installation guide
• Dimplex Cassette 500 / 1000 installation and operating manual
